ASRock B650 Pro RS ATX Motherboard

Name: ASRock ATX Motherboard B650 Pro RS
Brand: Asus
SKU: B650-PRO-RS
Price: 18846.00 INR
Availability: InStock

Original price was: ₹26,000.00.Current price is: ₹18,846.00.

9 Items sold in last 7 days

Brand: Asus

252 People watching this product now!

Compare

Add to wishlist

SKU: B650-PRO-RS Categories: Motherboard, Amd chipset, B650

Free delivery in India

24/7 Customer Support

100% Secure Checkout

Features:

B650 Pro RS
Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6200+(OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio<//p>
1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
Realtek 2.5G LAN

Specifications:

Unique Feature	Superb Productivity – PCIe Gen5 (M.2) – Dual Channel DDR5 Rock-Solid Durability – 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor Flexible Integrated I/O Shield Ultrafast Connectivity 2.5G LAN EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
CPU	Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset	– AMD B650
Memory	Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)* – Max. capacity of system memory: 128GB* – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Slots	CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode Chipset: 1 x PCIe 4.0 x1 Slots (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports AMD CrossFire 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: – 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 2 x SATA3 6.0 Gb/s Connectors,2 x SATA3 6.0 Gb/s Connectors-
RAID	Supports RAID 0, RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB	1 x USB 3.2 Gen2x2 Type-C (Rear) 1 x USB 3.2 Gen2 Type-C (Front) 4 x USB 3.2 Gen1 (2 Rear, 2 Front) 9 x USB 2.0 (6 Rear, 3 Front) 1 x USB 3.2 Gen2 Type-A (Rear)
Connector	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connectors 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

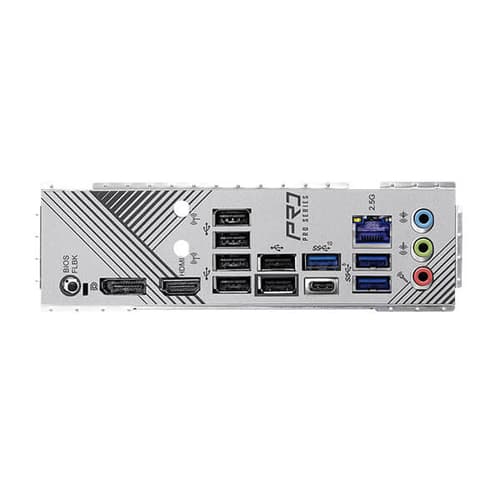

Rear Panel I/O	2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) 2 x USB 3.2 Gen1 Ports 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software – ASRock Motherboard UtilityA-Tuning) ASRock Polychrome SYNC ASRock Dragon 2.5G LAN Software UEFI – ASRock Auto Driver Installer ASRock Instant Flash ASRock Full HD UEFI
Accessories	1 x User Manual 2 x SATA Data Cables 3 x Screws for M.2 Sockets
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB
OS	Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	Features, Price, Specifications are subject to change without notice. Images used for represenatation purpose only

Platform	AMD
Manufacturer	Asus
Color	White
Motherboar Socket	AM5
Motherboard Chipset	B650
Motherboard Memory Speed	up to 8000+
Supported Memory Type	DDR5
Max Memory Support	128 GB
Channel Supported	Dual Channel
Memory Feature	Supports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory
Expansion Slots	1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot
Back Panel I/O Ports	LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors
Internal I/O Connector	1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors
