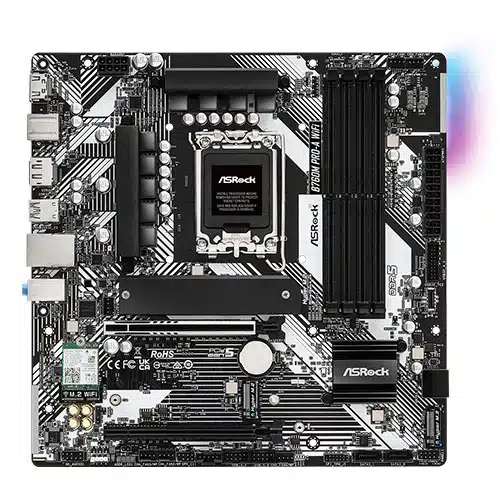

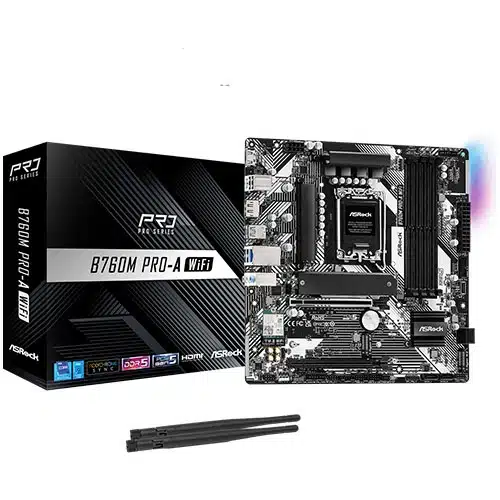

ASRock B760M Pro-A WiFi M-ATX Motherboard

Features:

• Supports 14th, 13th & 12th Gen Intel® Core Processors (LGA1700)
• 7+1+1 Power Phase, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 7200+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Killer 802.11axe WiFi 6E + Bluetooth

Dr.MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

7+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Reinforced Steel Slot [PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:

• Extra anchor points
• Stronger latch
• Ensure signal stability
• Make sure heavy graphics cards to be well-installed.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Intel Killer Wi-Fi 6E 802.11ax

The Intel Killer Wi-Fi 6E delivers supercharged wireless performance and enables seamless, immersive online gameplay. These solutions deliver increased levels of control alongside the power required to get the most from today’s demanding online applications.

Intel Killer Intelligence Center

The Intel Killer Intelligence Center interface is packed with valuable features for gamer and creator PC users. It adds the ability to analyze, optimize, and control your PC’s networking performance.The dashboard gives you a complete view of your computer’s network usage and shows which types of applications and websites are using bandwidth. While the Intel Killer software automatically connects you to the strongest access points it can, you can also check the Wi-Fi scores of the networks near you. You can also have the Intel® Killer Intelligence center automatically switch to the best access point or alert you if there is a better one nearby.

Intel Killer Prioritization Engine

The Intel Killer Prioritization Engine offers advanced network data detection and prioritization. It offers new intelligent network capabilities that detect and accelerate network traffic for specific websites in addition to the gaming or creative applications running on your computer. By prioritizing network traffic for key websites above lower-priority websites and apps, the Intel® Killer Prioritization Engine provides a more enjoyable and uninterrupted online entertainment experience. Watch a game, stream your game, play web-based games, and watch online videos all at the same time with a new level of confidence.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

M.2 Key-E Module Cap

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
