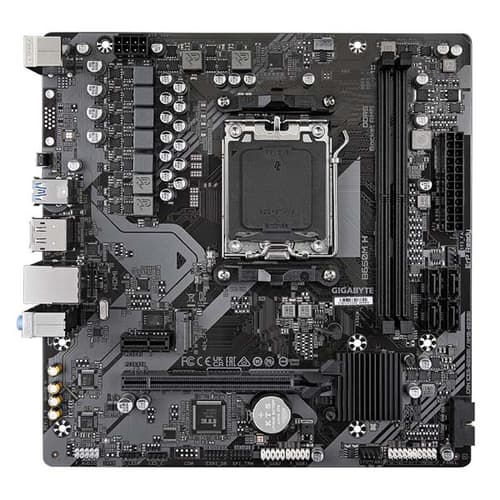

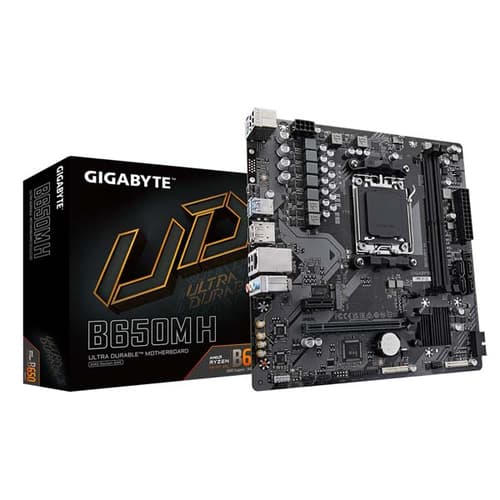

Gigabyte B650M H M-ATX Motherboard
Original price was: ₹14,050.00.₹8,725.00Current price is: ₹8,725.00.
Features:
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 Series / Ryzen 9000 Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance:
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform
Digital VRM Design:
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Future Connectivity:
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN with Bandwidth Management:
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design:
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Hi-Fi Audio:
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard:
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level
EZ-Latch:
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus:
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Smart Fan 6:
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Specifications:
| Model: | B650M H |
| CPU: |
(Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset: | AMD B650 |
| Memory: |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Onboard Graphics: | Integrated Graphics Processor:
* Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
| Audio: |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN: | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
*The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
| Storage Interface: | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
4 x SATA 6Gb/s connectors |
| USB: | CPU:
Chipset:
|
| Internal I/O Connectors: |
|

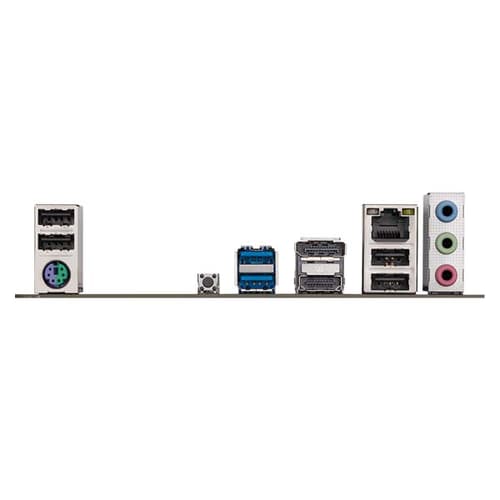

| Back Panel Connectors: |
|
| I/O Controller: | iTE I/O Controller Chip |
| H/W Monitoring: |
*Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS: |
|
| Unique Features: |
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Bundled Software: |
|
| Operating System: |
|
| Form Factor: | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Warranty: | 3 Years |
| Note: | ***Features, price and specifications are subject to change without notice.
***Images used for representation purposes only |
| Platform | AMD |
|---|---|
| Color | Black |
| Motherboar Socket | AM5 |
| Motherboard Chipset | B650 |
| Motherboard Memory Speed | up to 5100+ |
| Supported Memory Type | DDR5 |
| Max Memory Support | 128 GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports ECC UDIMM memory (non-ECC mode), Supports non-ECC UDIMM memory, Supports un-buffered memory |
| Expansion Slots | 1x PCIe 3.0 x16 slot (from AMD processor), 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors, 5000G, Supports x16 speed with Ryzen 5000, Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot |
| Back Panel I/O Ports | LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
| Internal I/O Connector | 1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Front panel audio connector, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1xTPM module connector, 2x System panel connectors, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4x SATA 6Gb/s connectors |
